Urine Meter ViUro® 500 Classic with bottom outlet bag

ViUro® 500 Classic with bottom outlet bag

Urine measurement system for diuresis

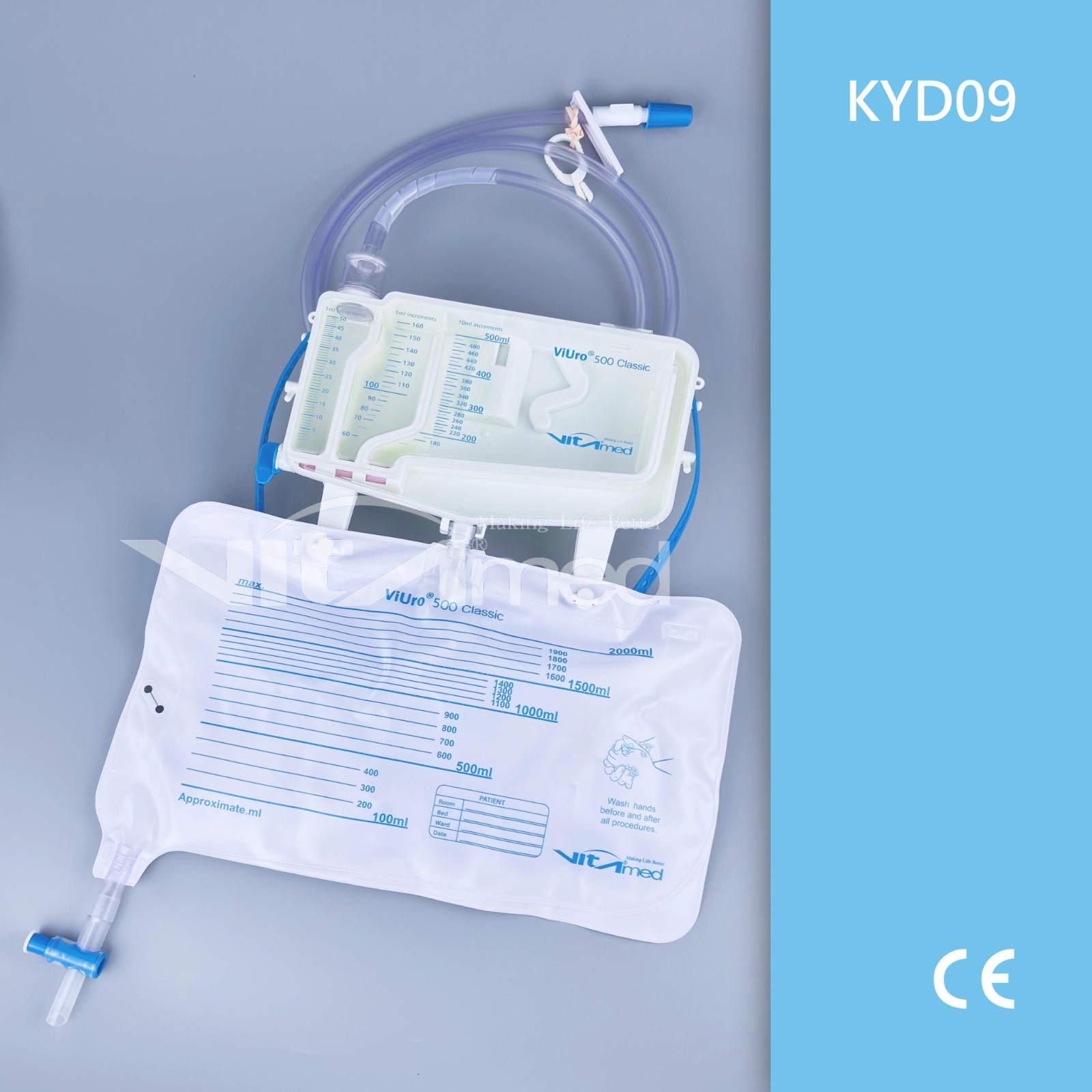

ViUro® 500 Classic is a closed sterile urine measurement system dedicated to diuresis and evaluation of urine quality, which allows an accurate urine volume measurement. The set includes a bottom outlet bag pre-mounted on a rigid 3-compartment container.

Indication

ViUro® is intended for closed urinary drainage and concomitant monitoring of the urinary output of critically ill patients.


Product Description



Item No.

Description

Packing

 Specifications

KYD09

  ViUro®  500 Classic Description:

  Capacity:2000ml   +500ml
  Rigid   3-compartment container with a capacity of 500 ml
  Transparent   tubing with slide clamp
  Anti-reflux valve   and air inlet to prevent urine back flow
  Needleless   Sampling Port with Cap
  T-Tap Outlet Valve
  2 punched hole   straps
  removable hook

Ctn Size:   58×29.5×20cm, 10pcs/ctn G.W./N.W.: 10/8 Kgs

Capacity:   500ml+2000ml, three chamber


Product Features

Features

§  Rigid 3-compartment container with a capacity of 500 ml

§  Dry Pasteur drip chamber with anti-reflux valve to prevent retrograde migration of bacteria and venting air inlet filters for pressure balance

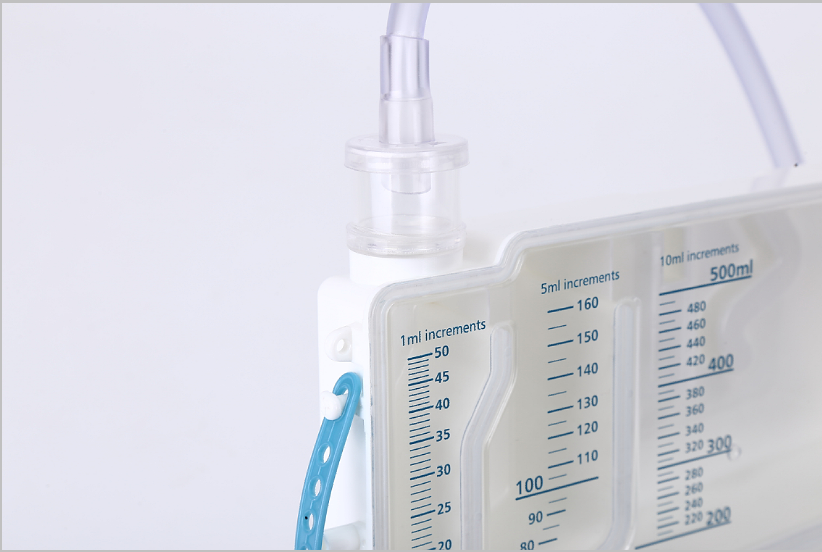

§  Vented measuring chamber divided in 3 compartments with 50 ml, 150 ml and up to 500 ml fine measuring for accurate urine measurement

§  Emptying of the container with clearly identified flow direction on the tap

§  2 L bottom outlet bag pre-mounted

§  Simple twist bayonet connector for safe connection without leakage

§  Anti-reflux valve and air inlet to prevent urine back flow

§  Bag design with approximate graduation scale and clear patient identification space

§  Free flow, no touch, bottom cross-outlet for quick and clean emptying

§  Cross-outlet can be stored horizontally to decrease the risk of infection

§  Transparent tubing with slide clamp, available in 120 cm, 170 cm or 200 cm length

§  Needle-free sampling port on the tubing stage connector to match international recommendations for a better safety of the user

§  Large choice of fixation solutions on all types of beds and supports:

§  2 punched hole straps pre-mounted on the container for permanent fixation on the bed frame

§  Integrated removable hook pre-mounted on the back side of the container for quick fixation

§  Pin and tip jack system for permanent fixation and quick repositioning

§  Removable fixation plate
